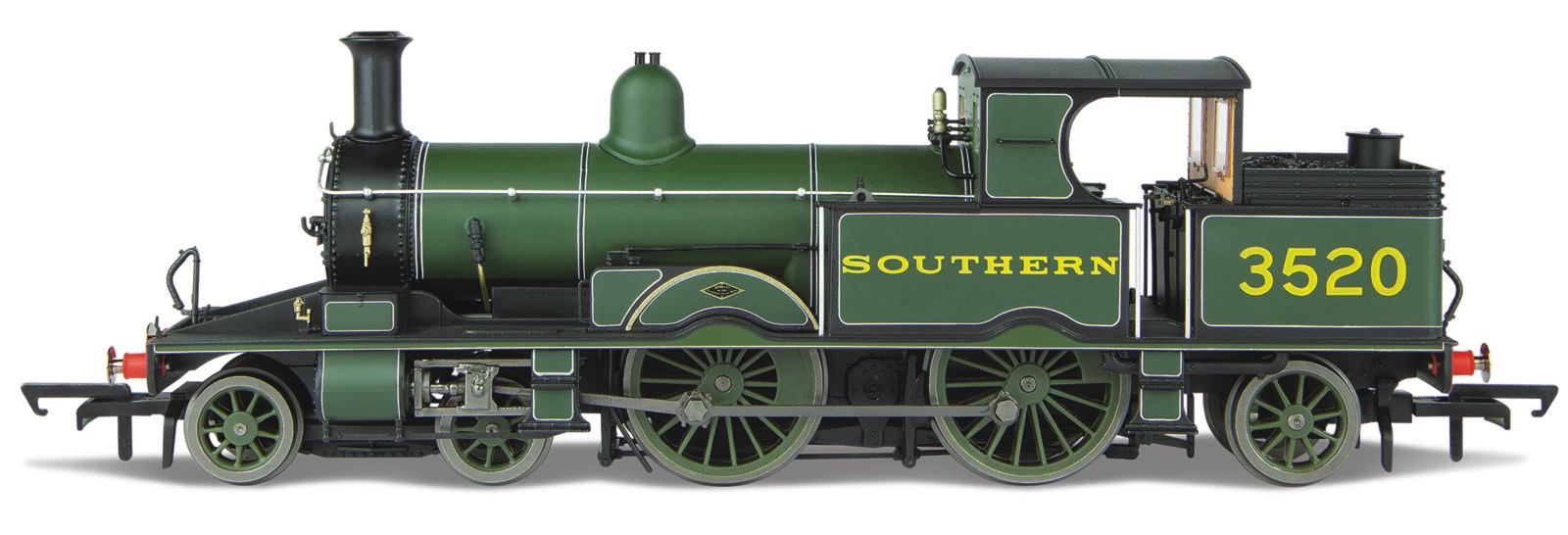

OR76AR006 Southern Railway Maunsell Green
OR76AR006XS Southern Railway Maunsell Green DCC Sound Fitted
Pre-production subject to change
Smooth Running 5 Pole motor
Pick ups on all drive wheels and rear wheel set
High definition livery specification
Separately fitted detail components
Motor Gearing to reflect scale speed operation
Highly detailed cab interior
NEM Couplings
DCC Ready & DCC Sound Fitted options
The Adams Radial is DCC Ready and comes with an NEM 8 pin socket in the Coal Bunker. The small size of the prototype means the space for decoders in quite limited. We recommend installing a direct fit chip such as the TCS DP2X-UK direct plug in 8 pin. This can be obtained from good model shops and also DCC Specialist retailers.
The DCC Sound fitted version will come supplied with an ESU Loksound V4.0 decoder, speaker and sound chamber pre installed.
Included sound effects:
F1 Sound on/off
F2 Steam whistle
F3 Short whistle
F4 Coal shovelling
F5 Air pump
F6 Acceleration/Brake time,
Shunting mode, Shunting speed
F7 Curve squeal on/off
F8 Water pump
F9 Cylinders blow out
F10 Conductor’s signal
F11 Coupler clank
F12 Dumping
F13 Brake set/Release
(automatically)
F14 Rail clank
F15 Safety valve
